FRA-C650 Thermal Safety Management Custom Available

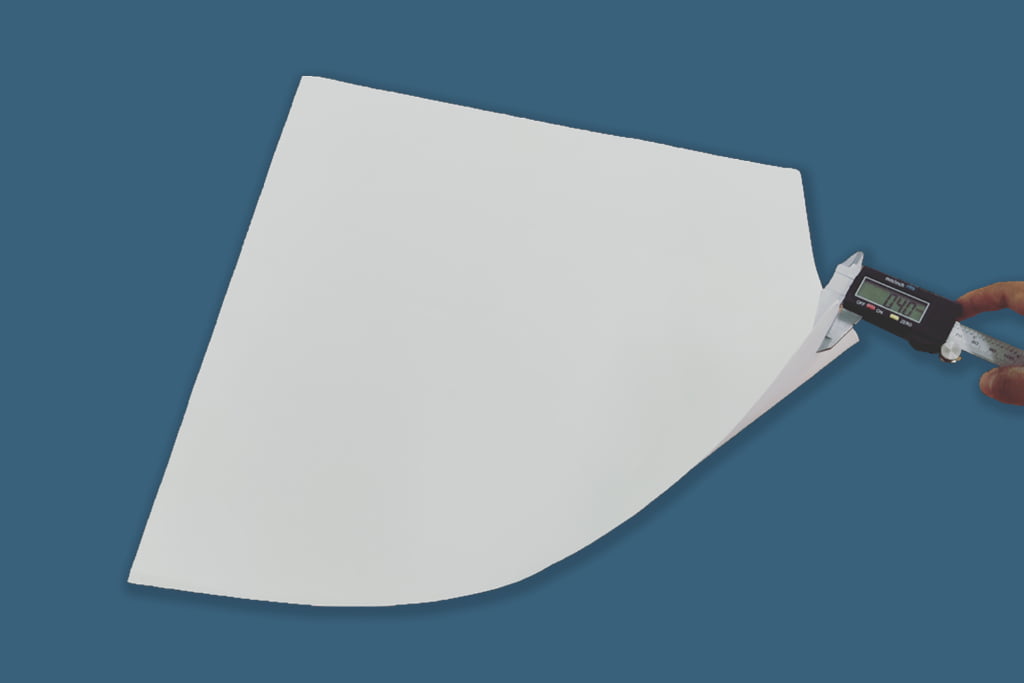

Ceramic-Fiber Aerogel Felt FRA-C650

Thickness

1-5mm

Service Temp.

up to 650°C

Material Structure

Base Material: Silica aerogel
Reinforcing Fiber: High-temperature-resistant ceramic fiber
Surface Lamination: Optional aluminum foil, fiberglass cloth, or other protective layers
Product Form: Flexible rolls or pre-cut sheets in various thicknesses and sizes

Request a Sample Request a Quote

UL Recognized

Custom R&D

Sample Available

Performance Data

Technical Specifications

Model: FRA-C650

Parameter	Value	Unit	Test Condition	Document
Product Model	FRA-C650			--
Maximum Service Temperature	up to 650	°C		--
Thickness	1.0-5.0	mm		--
Color	White			--
Density	280 + 30	kg/m*	GB/T 10295-2008	--
Thermal Conductivity	≤ 0.025	W/(m.k)	GB/T 10294-2008	--
Compression Ratio	45%~65% @2	MPa	GB/T 1041-2008	--
Water Repellency Rate	≥ 98%		GB/T 10299-2011	--
Flame-Retardant Rating	V0		UL 94-2013	--
Insulation Resistance	>=500MQ (DC 1000V,60s )		GB/T 10064-2006	--
Dielectric Withstand	No breakdown or flashover; leakage current < 1 mA (DC 3,000 V, 60 s)		GB/T 1408.1-2016	--
Restricted Substances Compliance	RoHS 、REACH 、ELV			--

* All values are typical data. Actual performance may vary depending on application conditions. Contact our engineers for project-specific validation.

Where it performs

Application Scenarios

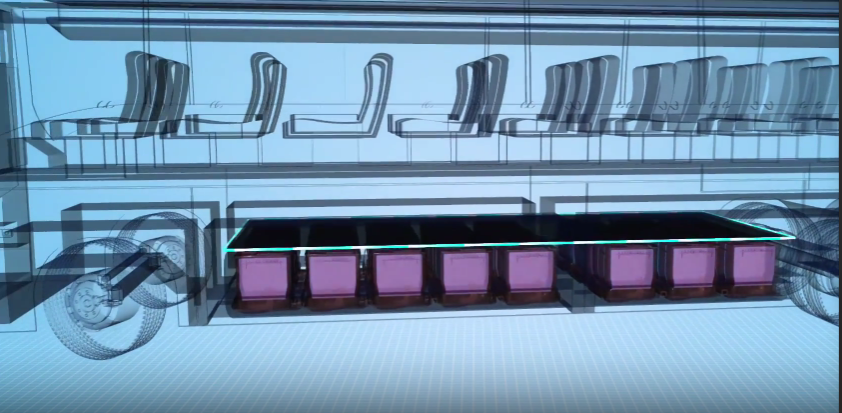

Engineered for demanding environments across battery thermal management, industrial insulation, cryogenic systems, and high-temperature processing.

Common Questions

Frequently Asked Questions

Have a specific technical or project question? Our engineers are ready to help you match the right material to your application.

Ask an Engineer

What is the maximum service temperature for this product?

Service temperature varies by product model. Please refer to the Technical Specifications table above for the exact rated temperature range. Our aerogel and nano-porous products are available in configurations rated up to 1100°C.

Is customization available for specific dimensions or properties?

Yes. Van-Research offers project-based customization including custom thickness, dimensions, density, facing materials, and performance tuning. Submit your project requirements via the inquiry form and our R&D team will evaluate feasibility.

Can I request a sample before placing a bulk order?

Absolutely. We encourage sample evaluation as part of our standard validation process. Click "Request a Sample" above to submit your application details, target performance requirements, and quantity. Samples are typically dispatched within 5-10 business days.

Does this product carry UL Recognition?

Selected products in our portfolio -- including FRA-C650, FRA-G600, and FRE-M1100 -- carry UL Recognition for both the United States and Canada. Please confirm the specific model's certification status on the product data sheet or contact us directly.

What test standards are used for the listed specifications?

Specifications are measured according to industry-standard test methods including ASTM, ISO, GB/T, and UL standards as applicable. Test conditions are noted in the specifications table. Full test reports can be provided upon request with your inquiry.

What is the typical lead time for production orders?

Standard product lead times are 2-4 weeks after order confirmation. Custom-engineered solutions may require additional time depending on complexity and volume. Contact our sales team for a project-specific timeline.
