FRA-G784 Custom Available

Wet-Laid Fiberglass Aerogel Blanket FRA-G784

Thickness
0.6-5mm
Service Temp.
up to 650°C
Material Structure

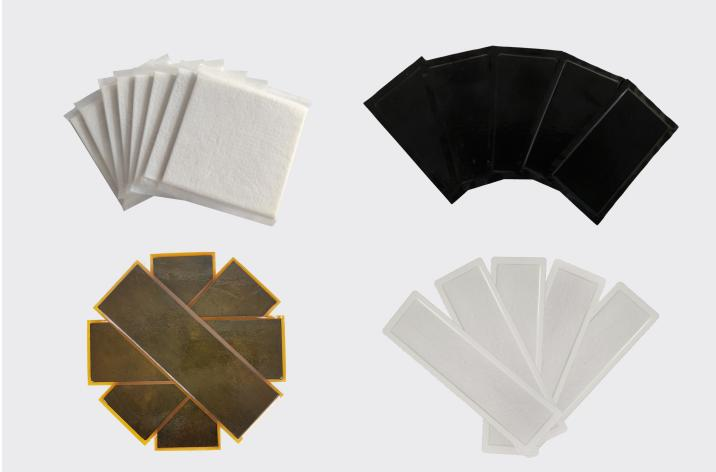

Wet-Laid Fiberglass Aerogel Blanket is a high-temperature insulation blanket made from nanoporous silica aerogel reinforced with fiberglass. Suitable for medium- and high-temperature thermal protection applications up to 650°C, it offers excellent thermal stability, dimensional stability, controlled thickness, a firm and flat surface, easy cutting and fabrication, and high cost-effectiveness.

Request a Sample Request a Quote
UL Recognized
Custom R&D
Sample Available
Performance Data

Technical Specifications

Model: FRA-G784
Parameter Value Unit Test Condition Document
Product Model FRA-G600 --
Maximum Service Temperature up to 650 °C --
Thickness 0.5-6 mm --
Color White --
Density 280 + 30 kg/m* GB/T 10295-2008 --
Thermal Conductivity ≤ 0.0250 W/(m.k) GB/T 10294-2008 --
Compression Ratio 35%~55% @2 MPa GB/T 1041-2008 --
Water Repellency Rate ≥ 98% GB/T 10299-2011 --
Flame-Retardant Rating V0 UL 94-2013 --
Insulation Resistance >=500MQ (DC 1000V,60s ) GB/T 10064-2006 --
Dielectric Withstand No breakdown or flashover; leakage current < 1 mA (DC 3,000 V, 60 s) GB/T 1408.1-2016 --
Restricted Substances Compliance RoHS 、REACH 、ELV --

* All values are typical data. Actual performance may vary depending on application conditions. Contact our engineers for project-specific validation.

Where it performs

Application Scenarios

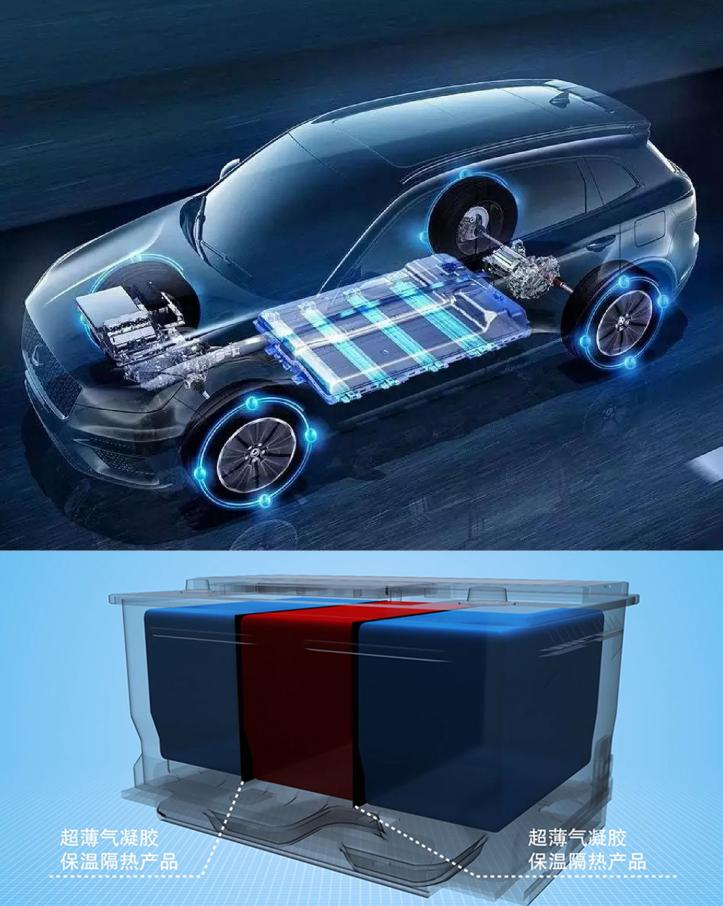

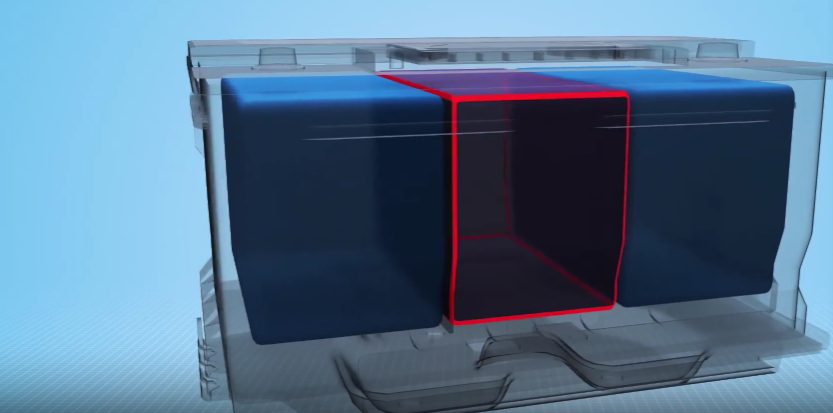

Engineered for demanding environments across battery thermal management, industrial insulation, cryogenic systems, and high-temperature processing.

Common Questions

Frequently Asked Questions

Have a specific technical or project question? Our engineers are ready to help you match the right material to your application.

Ask an Engineer
What is the maximum service temperature for this product?
Service temperature varies by product model. Please refer to the Technical Specifications table above for the exact rated temperature range. Our aerogel and nano-porous products are available in configurations rated up to 1100°C.
Is customization available for specific dimensions or properties?
Yes. Van-Research offers project-based customization including custom thickness, dimensions, density, facing materials, and performance tuning. Submit your project requirements via the inquiry form and our R&D team will evaluate feasibility.
Can I request a sample before placing a bulk order?
Absolutely. We encourage sample evaluation as part of our standard validation process. Click "Request a Sample" above to submit your application details, target performance requirements, and quantity. Samples are typically dispatched within 5-10 business days.
Does this product carry UL Recognition?
Selected products in our portfolio -- including FRA-C650, FRA-G600, and FRE-M1100 -- carry UL Recognition for both the United States and Canada. Please confirm the specific model's certification status on the product data sheet or contact us directly.
What test standards are used for the listed specifications?
Specifications are measured according to industry-standard test methods including ASTM, ISO, GB/T, and UL standards as applicable. Test conditions are noted in the specifications table. Full test reports can be provided upon request with your inquiry.
What is the typical lead time for production orders?
Standard product lead times are 2-4 weeks after order confirmation. Custom-engineered solutions may require additional time depending on complexity and volume. Contact our sales team for a project-specific timeline.
